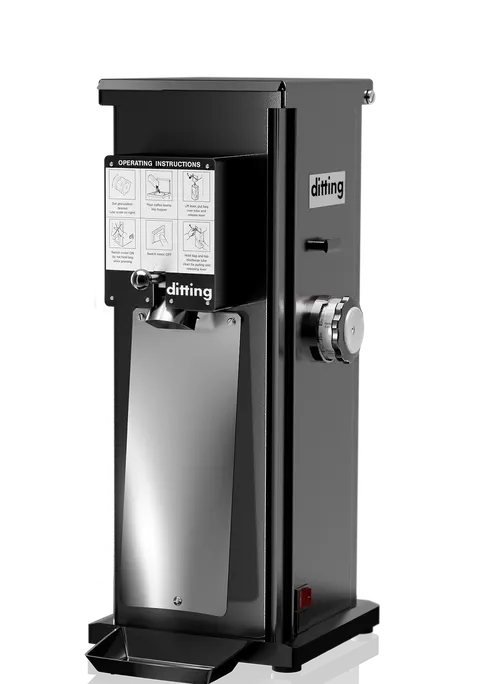

Ditting KR1403

Grinders

From €5,400 + VAT

ø 140 mm: burrs
1.1 kg: hopper
1400 rpm: motor speed

Description

The 1403 is an extremely powerful industrial grinder, designed for roasteries and coffee suppliers where high output and reliability matter. Thanks to its wide grind adjustment range and bag-shaking function, this model lets you ensure precise, even distribution of coffee straight into the bags. Ideal wherever grinding coffee is daily, intensive work.

Specifications Specifications PDF Manufacturer’s page

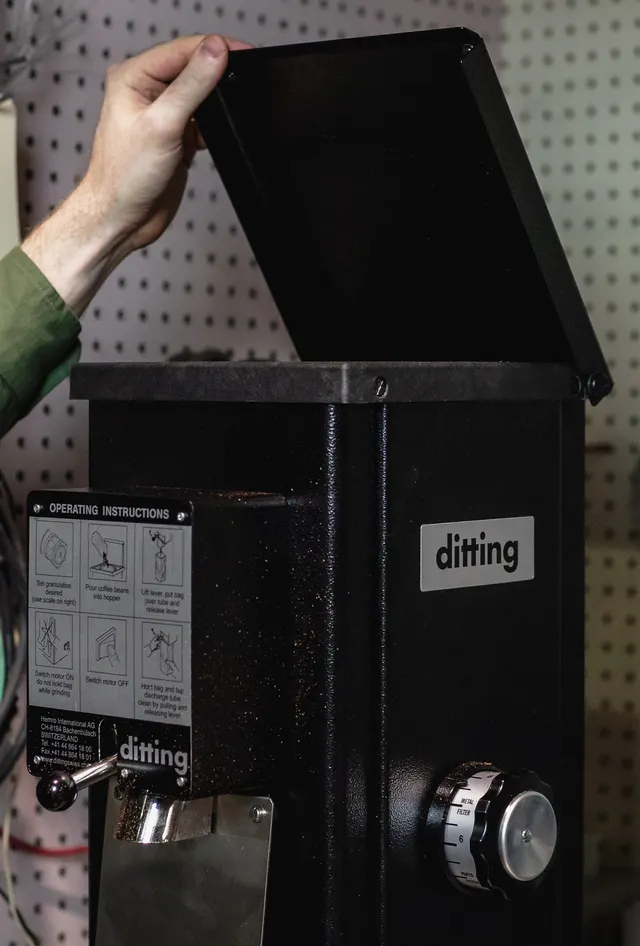

Ditting KR1403 with the bean hopper lid open

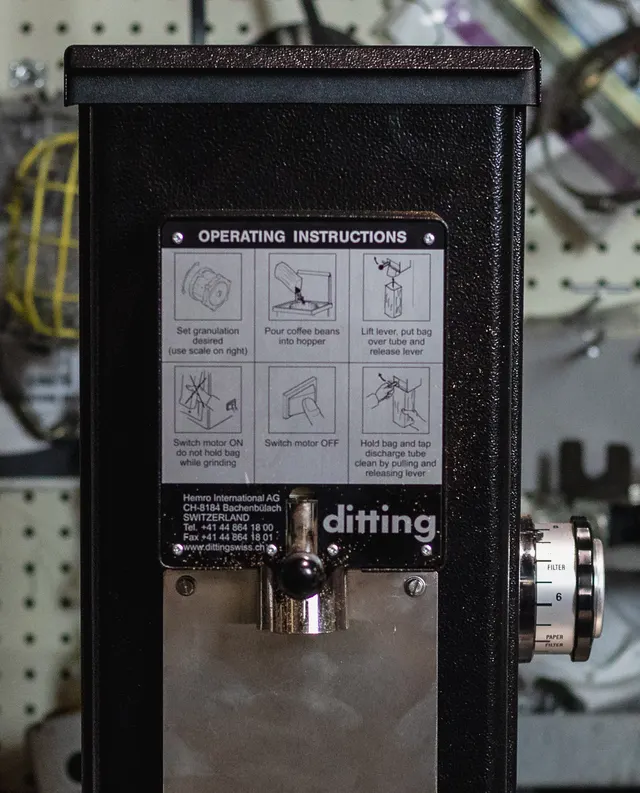

Ditting KR1403 instruction plate and grind size adjuster, close-up

Technical specifications

Specifications PDF

Supply voltage / frequency / phases: 380–415 V / 50/60 Hz / 3~200–240 V / 50/60 Hz / 3~
Speed: 1400 rpm (50 Hz)
Burr diameter: ø 140 mm
Burr material: special steel
Burr life (medium setting): about 10–15 tonnes
Average grind speed*: 2200 g/min
Bean hopper: approx. 1100 g
Rated power: 1700–2000 W
Dimensions (W x H x D): 260 × 640 × 340 mm
Packaging dimensions (W x H x D): 330 × 730 × 400 mm
Net weight: 38 kg
Shipping weight: 40 kg
Colours: Jet Black, Brown Beige, Ruby Red, Signal White
Available versions: KFA – automatic bag holder (without a shaking mechanism)KR – manual bag holder (with a shaking mechanism)
Equipment features: Powerful three-phase motorGrind adjustment with extraction informationOn the KR version: bag-holding lever and shakerOn the KR version: vibrating platform
Additional accessories (optional): 140 mm special steel burrs for an extra-fine Turkish grind140 mm special steel burrs for faster and coarser grindingExtra-wide grind adjustment rangeContainer for ground coffeeNon-standard RAL colours according to the current price list
Certifications and standards: CE, CB, UL, NSF (others on request)IEC/EN 60335-1, IEC/EN 60335-2-64,ANSI/UL 763, ANSI/NSF 8, CSA-C22.2 No. 195
